Energy Drink 24000 BPH Bottled Water Filling Machines
Model: | DGY15 | Type: | Filling Machine |
---|---|---|---|
Function: | Bottle Washing Filling Capping | Material: | Stainless Steel |
Filling Valve: | Gravity Mechanical Valve Or Customer Needs | Capacity: | 24000 Bpm |
Number Of Bottle Rinsing Clip: | 50 | Number Of Filling Valve: | 50 |
Number Of Capping Head: | 15 | Dimensions: | 5300x4200x2900 Mm |
Bottle Diameter: | Φ60-Φ96 Mm | Bottle Height: | 180-315 Mm |
Bottle Volume: | 350-1500 Ml | Certification: | CE, GB/T19001-2000 |
High Light: | 12000 bpm Bottled Water Filling Machines, 12000 bpm Drink Bottle Filling Machines, 1500ml Bottled Water Filling Machines |
Energy Drink 12000 Bpm Bottled Water Filling Machines
New High Speed Plastic PET Bottle Water Energy Drink Filling Machine

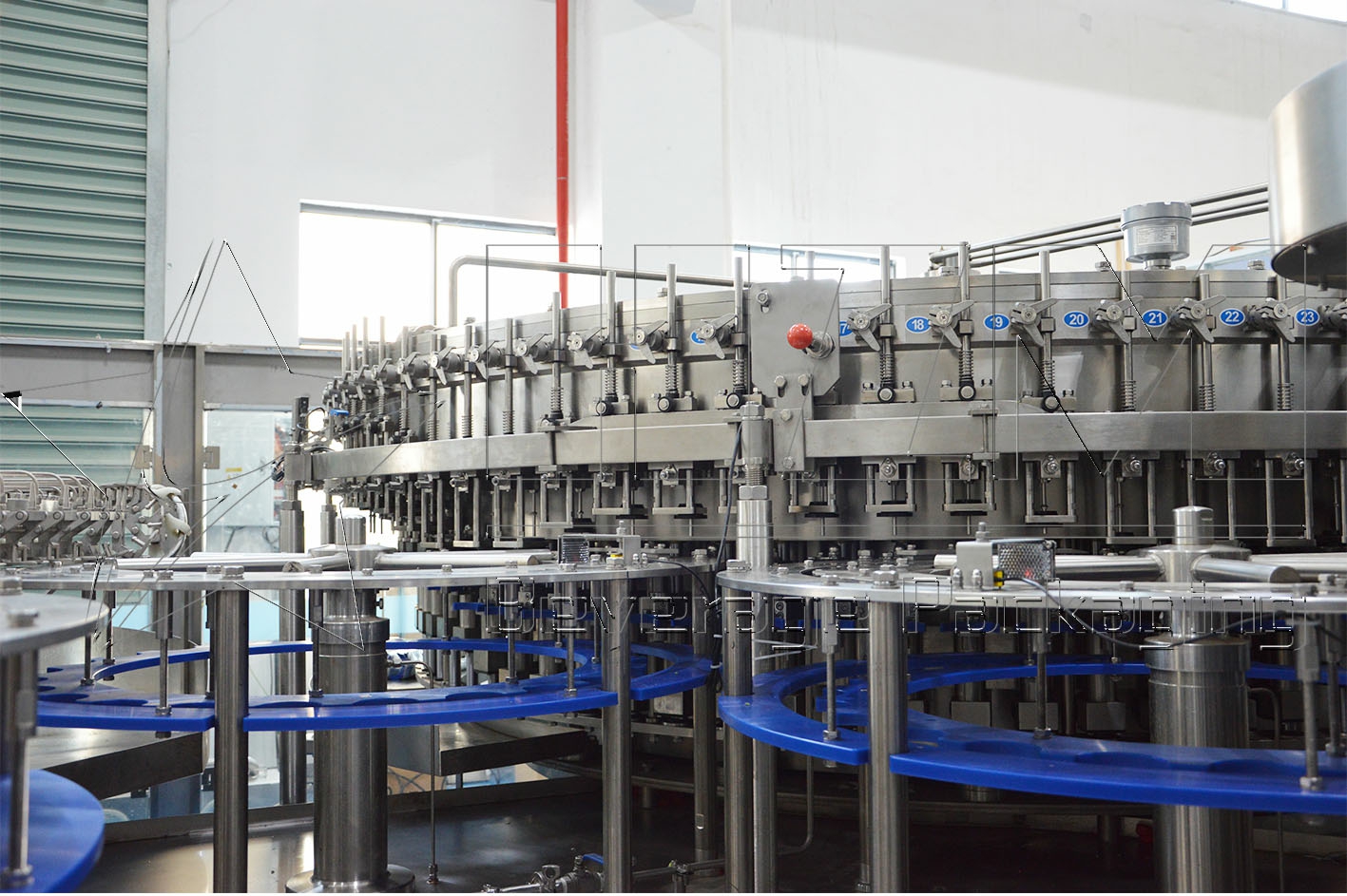

DGY Series Rinser-Filler-Capper Monobloc
DGY series rinser-filler-capper monobloc is an efficient automatic liquid packing machine that perfectly combines bottle rinsing machine, pressure filling machine and capping machine. Empty bottles are orderly fed into the rinsing machine by an air conveyor, and then are turned over and washed inside by the nozzles. After dripping, bottles are automatically sent to the filling machine for high quality and high speed filling. At last, the capper is used for safe and reliable capping of these bottles.
Specifications
Capacity: A-15000 bottles/hour ----54000 bottles/hour (500ml)
Applicable bottle type 200ml-1500ml
Capacity: B-1500 bottles/hour-----8000 bottles/hour (5L)
Applicable bottle type 3L-10L
Filling valve: Gravity mechanical valve/imported flow meter valve is used according to customer needs
Specifications of Bottled Water Filling Machine
Model | Number of Bottle Rinsing Clip | Number of Filling Valve | Number of Capping Head | Capacity (BPH) |
Bottle Size |
Dimensions (mm) | Weight (Kg) | Remark | ||
Diameter (mm) | Height (mm) | Volume (ml) | ||||||||
DGY06 | 18 | 18 | 6 | 8000 | Φ60-Φ96 | 180-315 | 350-1500 | 2480x1980x2600 | 4000 | All-in-one Type |
DGY08 | 24 | 24 | 8 | 12000 | Φ60-Φ96 | 180-315 | 350-1500 | 2800x2400x2600 | 6000 | All-in-one Type |
DGY10 | 32 | 32 | 10 | 16000 | Φ60-Φ96 | 180-315 | 350-1500 | 3300x3000x2700 25002500 3085 | 7200 | All-in-one Type |
DGY12 | 40 | 40 | 12 | 20000 | Φ60-Φ96 | 180-315 | 350-1500 | 3900x3180x2700 | 9000 | All-in-one Type |
DGY15 | 50 | 50 | 15 | 24000 | Φ60-Φ96 | 180-315 | 350-1500 | 5300x4200x2900 | 10000 | All-in-one Type |
DGY15 | 60 | 60 | 15 | 28000 | Φ60-Φ96 | 180-315 | 350-1500 | 5700x4600x2900 | 12000 | All-in-one Type |
DGY18 | 72 | 72 | 18 | 32000 | Φ60-Φ96 | 180-315 | 350-1500 | 6600x5100x2900 | 15000 | All-in-one Type |
FAQ
Q: What are the Primary Products of Your Company?
A: Our products mainly include water production line, juice production line, tea production line, water filling machine, juice filling machine, tea filling machine, and more.
Q: Where is Your Beverage Machinery Applied to?
A: Our beverage production lines are extensively used for packaging of water, fruit juice, tea drinks, milk beverage, juice with grains, sodas, protein beverages, energy drinks, and more.
Q: Do Your Water Production Lines Meet Environmental Protection Requirements?
A: Our water production lines are eco-friendly and energy-saving. They adopt advanced environmental protection technologies from Germany and Italy. All production procedures quite meet the standards of ISO9001: 2000.
Q: Which Countries are Your Beverage Machinery Sold to?
A: Our products are widely exported to U.S.A, Russia, England, Canada, Japan, Egypt, Mexico, South Africa, North Korea, Indonesia, Mongolia, Malaysia, Dominica, Nigeria, Libya, Turkey, Kazakstan, Iran, Yemen, Sudan, Vietnam, Bengal, Burma, Serbia, Macedonia, Lebanon, Congo, Syria, Venezuela, Iraq, Saudi Arabia, and Kenya.
Q: What Kind of After-sale Services does Your Company Provide?
A: Installation guides, device debugging and technical trainings are offered to our global customers to help them make full use of our water production lines, tea filling machines, beverage production lines, and other beverage machinery.
TAG: 12000 bpm Bottled Water Filling Machines 12000 bpm Drink Bottle Filling Machines 1500ml Bottled Water Filling Machines Bottled Water Filling Machines
